The Power of Three Row Roller Slewing Bearings
When it comes to industrial machinery that must withstand extreme loads and harsh working conditions, the three row roller slewing bearing is the heavyweight champion. Known for its ability to bear the highest loads among all slewing bearing types, the three row roller slewing bearing is a crucial component in heavy-duty equipment, ensuring the smooth and reliable operation of cranes, excavators, and other massive machines.

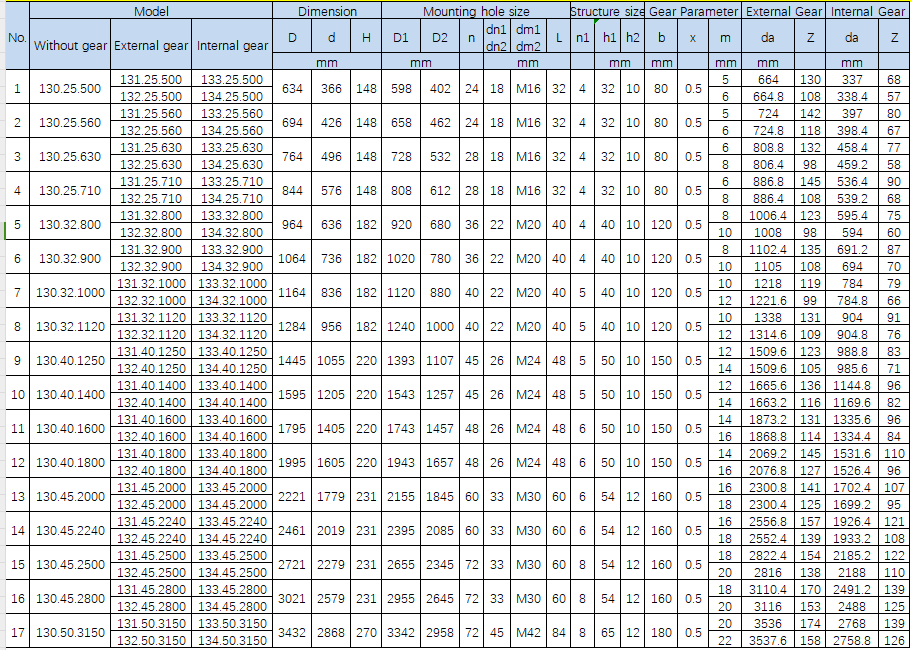

130, 131, 132,133, 134 series
Joylax

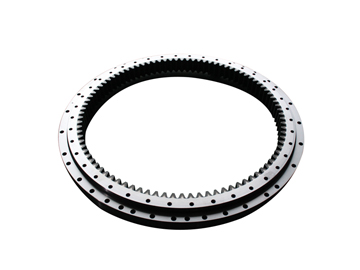

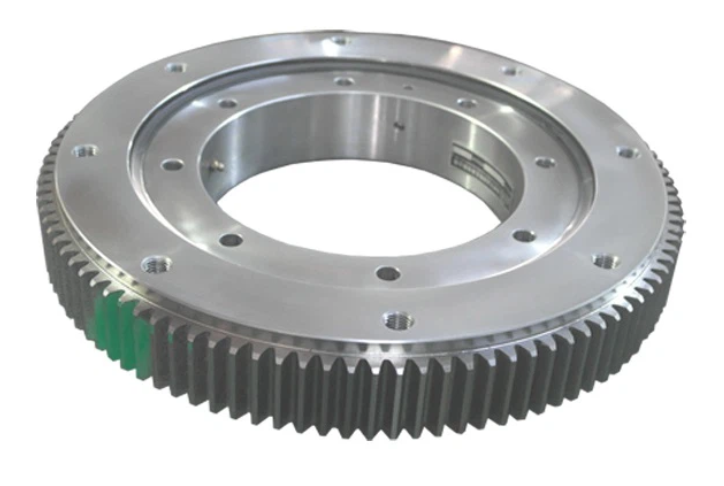

Three row roller slewing bearings are a type of slewing bearing with three distinct rows of rollers positioned in separate raceways. These bearings are designed to handle massive loads, including axial, radial, and tilting moment forces, making them suitable for some of the heaviest industrial applications.

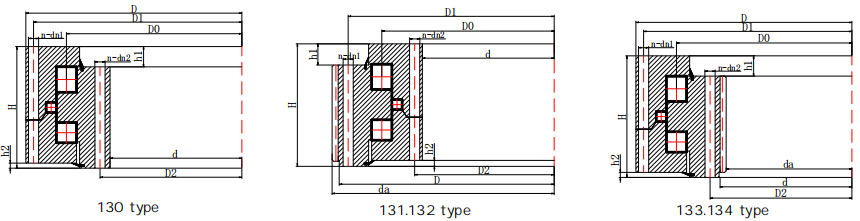

The design of the three row roller slewing bearing includes three rows of steel rollers, each positioned in a dedicated raceway. This unique design allows the bearing to distribute the load efficiently across the three rows of rollers, ensuring that each roller row bears a portion of the overall load. The structure of the three row roller slewing bearing is robust, with a large axial and radial size that contributes to its ability to support high loads. It is also equipped with seat rings and an upper orbit, further enhancing its load-bearing capability.
Three row roller slewing bearings work by using their three rows of steel rollers to distribute the load evenly across each row. This design allows the bearing to support large axial, radial, and tilting moment loads simultaneously. Each row of rollers is tasked with bearing a different portion of the load, making the bearing more efficient and durable in handling heavy-duty operations.
The three row roller slewing bearing is renowned for its ability to handle the heaviest loads. Due to its design with three roller rows, this bearing offers superior load capacity compared to other slewing bearing types. It is particularly effective for machinery that needs to operate under extreme stress, such as cranes and excavators.
One of the standout features of three row roller slewing bearings is their ability to handle axial, radial, and tilting moment loads simultaneously. This versatility makes them ideal for complex and heavy-duty machinery where multiple types of forces are acting on the system at once.
The design of the three row roller slewing bearing is inherently sturdy and durable, making it ideal for use in environments that demand reliability. The solid structure ensures that the bearing can withstand significant mechanical stress without compromising performance or safety.
The materials used in the construction of three row roller slewing bearings are critical to their performance. These materials are chosen for their ability to withstand high stress, resist wear, and ensure long-term durability.
50Mn steel is a high-strength, medium-carbon steel that is often used in bearings due to its excellent wear resistance and strength. It is well-suited for applications where the bearing is subjected to heavy loads and harsh working conditions.
42CrMo is an alloy steel known for its high toughness, strength, and resistance to wear and fatigue. It is used in high-performance slewing bearings for applications that require extra durability, such as in heavy machinery and cranes.
C45 steel is a medium-carbon steel alloy that is commonly used for heavy-duty bearings due to its good wear resistance and strength. It is highly reliable in high-load applications and ensures the bearing's longevity.
The three row roller slewing bearing is widely used in heavy-duty machinery that requires superior load-bearing capacity and stability. Some common applications include:
Wheeled excavators require a slewing bearing that can support significant loads and provide precise rotation. Three row roller slewing bearings meet these requirements, offering exceptional load-bearing capacity and stability during excavation operations.
Wheeled cranes, which are often used in construction and lifting operations, rely on three row roller slewing bearings to ensure smooth rotation and the ability to handle heavy loads. These bearings allow for precise movements and long-term durability in lifting tasks.
For ship cranes and offshore cranes, which operate in challenging environments and under extreme loads, three row roller slewing bearings provide the necessary support. Their ability to handle multiple forces simultaneously makes them essential for these demanding applications.
Ladle turrets used in steel plants require slewing bearings that can handle extreme axial and radial loads. Three row roller slewing bearings are ideal for these applications, where high-load capacity and stability are critical.
Heavy-duty mobile cranes used in construction, mining, and other industries benefit from the robust performance of three row roller slewing bearings. These bearings support the crane’s turning and lifting operations, ensuring that it can handle large loads with ease.
Truck crane
Window cleaner
AGV trolley
high working platform
Wind power generation
Medical machine
The unique three-row design ensures that the load is evenly distributed across the bearing, which prevents wear and extends the bearing's life. This makes three row roller slewing bearings especially reliable in heavy-duty applications.
Due to their robust structure and the use of high-quality materials, three row roller slewing bearings offer superior durability, even in harsh environments. This ensures that machinery operates efficiently for longer periods without failure.
The ability to handle a wide range of loads and forces makes these bearings versatile and suitable for use in various heavy-duty equipment, including cranes, excavators, and turrets.
Three row roller slewing bearings can be customized to meet the specific requirements of different applications. Whether it’s adjusting the load capacity, size, or material composition, manufacturers can design these bearings to ensure optimal performance in each particular use case.
seat frame installing
To keep three row roller slewing bearings in optimal condition, regular maintenance is crucial. Some key maintenance tips include:
Periodically check for any signs of wear, damage, or contamination.
Ensure that the bearings are properly lubricated to reduce friction and prevent wear.
Regularly monitor the performance of the bearing to detect potential issues before they become serious.
Three row roller slewing bearings are an essential component in machinery that needs to withstand heavy loads and harsh working conditions. Their ability to handle axial, radial, and tilting moment loads simultaneously, combined with their superior load capacity and durability, makes them ideal for a range of heavy-duty applications, from cranes to excavators and ladle turrets. With the right materials and proper maintenance, these bearings provide reliable and long-lasting performance, making them a crucial part of modern heavy equipment.
FAQs 1. What makes three row roller slewing bearings different from other types of bearings?
Three row roller slewing bearings have three rows of rollers that allow them to handle the heaviest loads, providing superior load capacity and stability.
2. What are the common applications of three row roller slewing bearings?
These bearings are used in wheeled excavators, wheeled cranes, offshore cranes, ladle turrets, and heavy-duty mobile cranes.
3. What materials are used to make three row roller slewing bearings?
They are typically made from 50Mn, 42CrMo, and C45 steel.
4. How do three row roller slewing bearings distribute load?
The three rows of rollers evenly distribute the load across the bearing, which helps reduce wear and extend the lifespan.
5. What maintenance is required for three row roller slewing bearings?
Regular inspections, proper lubrication, and performance monitoring are essential for maintaining these bearings in optimal condition.
