Four-Point Contact Ball Bearings: The Unsung Heroes of Industrial Machinery
When we think of industrial machinery, we often overlook the intricate components that make it all work. Among these unsung heroes are four-point contact ball bearings. These versatile bearings play a pivotal role in a wide variety of applications, from cranes to conveyors. Understanding how these bearings work and where they’re used can help you appreciate the complex engineering that powers heavy machinery.
010, QWA, QNA
Joylax

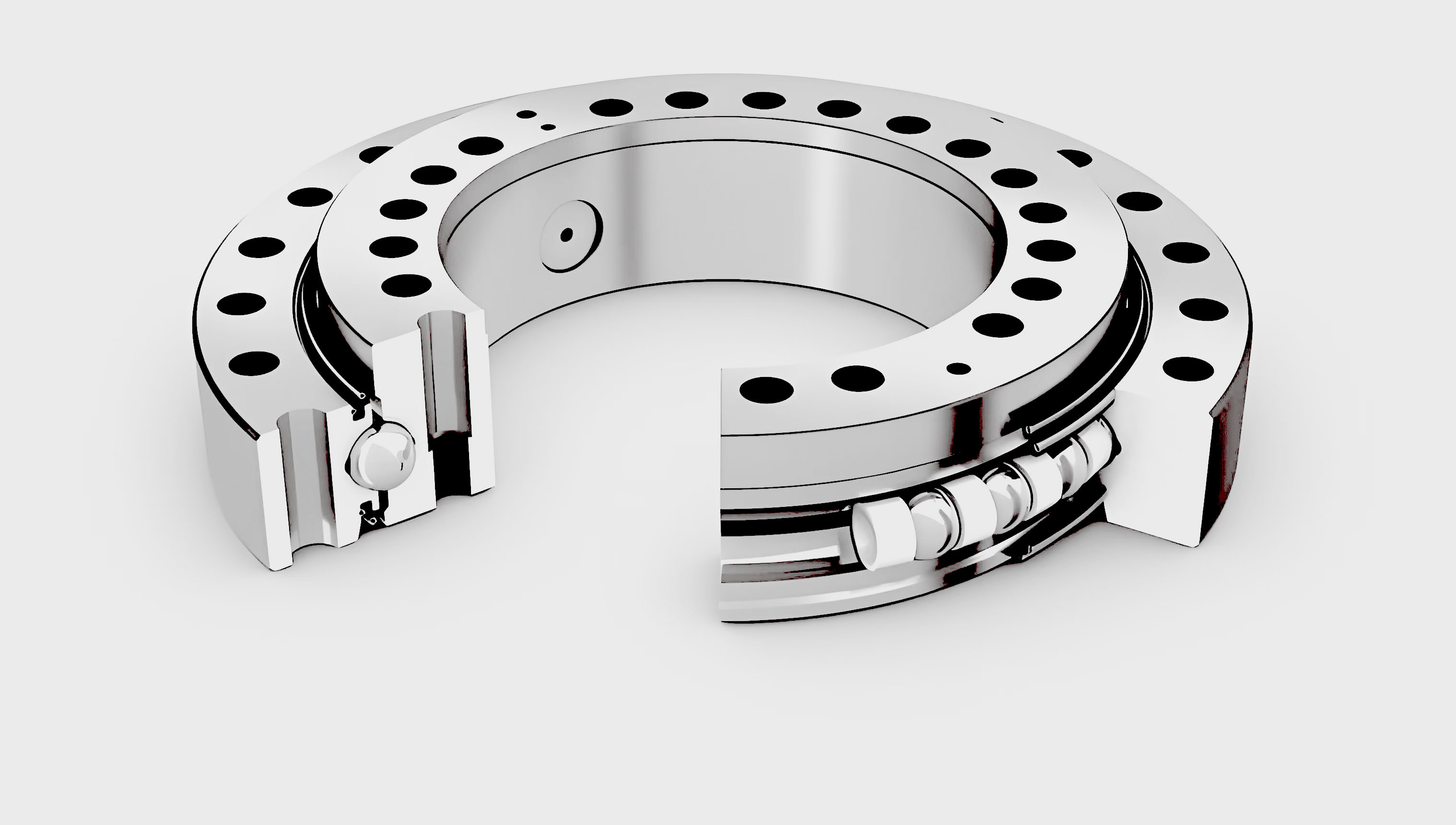

The four-point contact ball bearing features a set of ball bearings arranged in such a way that they form two contact points per ball on each raceway. This unique design enables the bearing to handle a combination of radial and axial forces without losing efficiency. It’s this dual functionality that sets it apart from standard radial ball bearings.

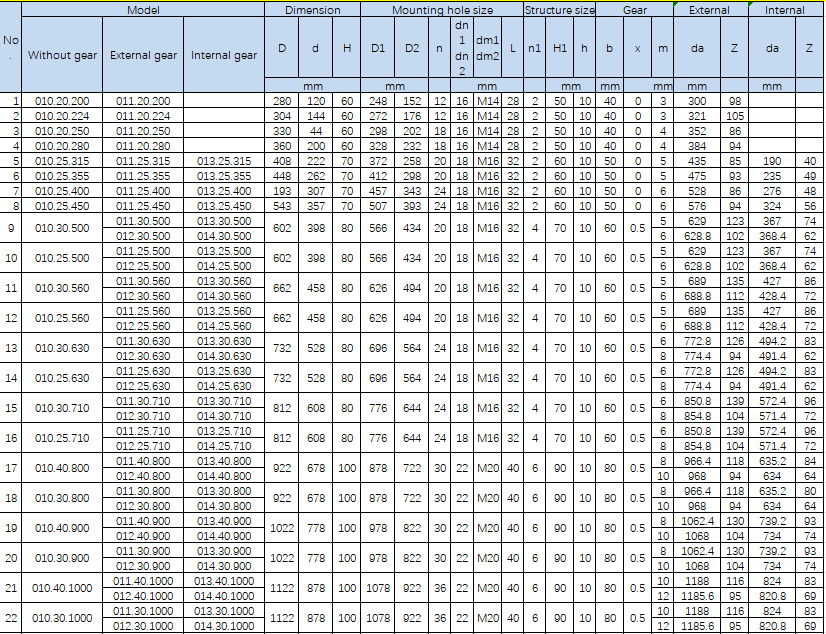

QWA type

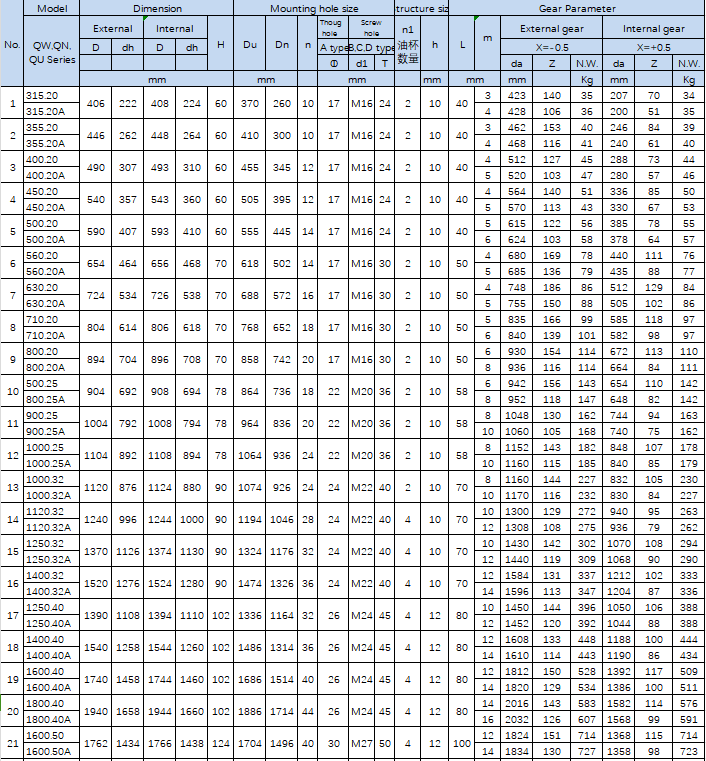

011/012 type
without teeth type

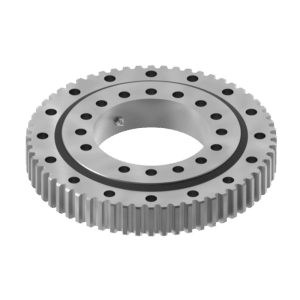

External teeth type
These bearings are engineered to manage both radial and axial loads simultaneously. Radial loads are the forces that push perpendicular to the axis of rotation, while axial loads are those that push along the axis. Four-point contact ball bearings excel in handling these combined forces due to their design, which distributes the load across the balls in contact with the raceways.

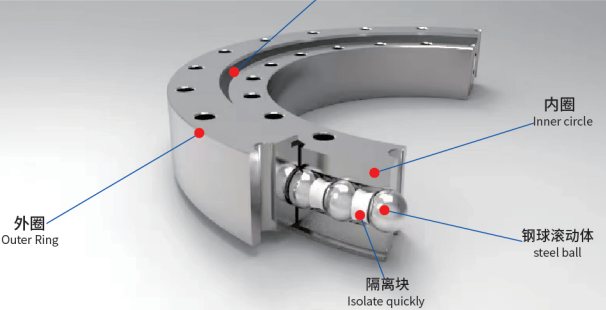

The bearing's structure allows it to handle both types of loads at once. This is particularly important in industrial machinery that faces multiple forces during operation. The raceways are carefully crafted to distribute the pressure evenly, minimizing wear and tear.

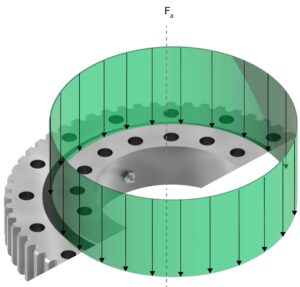

Axial load
Radial load

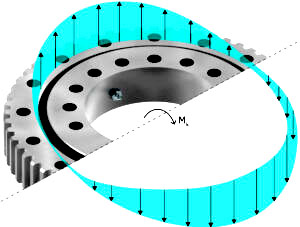

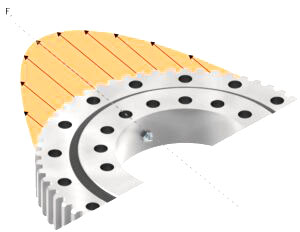

Title moment load
The balls themselves play a critical role in reducing friction and ensuring smooth movement. The raceways, which are precision-engineered grooves, allow the balls to roll efficiently, reducing the risk of metal-to-metal contact and wear.
The materials used to manufacture four-point contact ball bearings are crucial to their performance and longevity. Three primary materials are commonly used in their construction:
This material is known for its high tensile strength and ability to withstand heavy loads, making it ideal for use in bearings that handle significant industrial stresses.
A high-carbon alloy steel, 42CrMo offers exceptional wear resistance and is frequently used in applications requiring high strength and durability.
C45 is a medium-carbon steel that strikes a balance between strength and toughness. It's commonly used in components where a combination of both is necessary for long-term reliability.
These bearings offer a range of advantages that make them indispensable in modern industrial machinery:
The compact design of four-point contact ball bearings allows for higher load capacity within a smaller footprint, making them ideal for applications where space is at a premium.
Unlike conventional bearings that may only handle one type of load at a time, four-point contact ball bearings can manage both axial and radial loads simultaneously, which simplifies the design and improves overall performance.
The ability to handle multiple forces reduces the need for multiple bearings in a single application, leading to more streamlined and cost-effective machinery designs.
For more demanding applications, four-point contact ball bearings can be engineered into slewing ring bearings, which incorporate larger raceways and can support even greater loads.
Some bearings feature bolted raceways and built-in gearing, allowing them to handle higher levels of stress and torque, and improving the overall functionality of machinery.
seat frame installing
Four-point contact ball bearings are used across a variety of industries, with applications in machinery that must handle complex and variable loads.
These bearings are integral to slewing conveyors, where they enable smooth and efficient rotation of the conveyor's components, ensuring that materials are transported with precision.
In welding applications, these bearings are used to facilitate the precise movement of equipment, allowing for optimal positioning during welding processes.
Crane operations, whether truck-mounted, deck-mounted, or on aerial platforms, require bearings that can withstand high radial and axial loads. Four-point contact ball bearings offer the durability and stability needed to ensure safe and efficient operation.
Excavators and other heavy machinery rely on these bearings to maintain stability and ensure that the movement of the arm and bucket is smooth and controlled, even under heavy loads.
Truck crane
Window cleaner
AGV trolley
Port machine
Wind power generation
Medical machine
By allowing machinery to handle more complex load conditions without compromising performance, these bearings enhance overall machinery efficiency.
The ability to bear both axial and radial loads means that these bearings can take on higher loads, extending the service life of the machinery and reducing the likelihood of failure.
These bearings help to maintain the stability of machinery, especially in dynamic environments where forces change rapidly, ensuring smooth operation and minimizing the risk of malfunction.
Proper maintenance is key to ensuring the longevity of these bearings. Regular inspections, lubrication, and monitoring for signs of wear and tear can extend the lifespan of these components significantly.
Ensure bearings are regularly cleaned and lubricated to prevent friction buildup and reduce wear.
Watch for signs like increased noise, vibration, or heat buildup, which may indicate that the bearings need attention.
While these bearings offer excellent performance, they do come with challenges such as load imbalances and adverse environmental conditions.
Ensuring the proper distribution of loads is crucial to prevent premature failure of the bearing.
Harsh environments, like those with extreme temperatures or exposure to corrosive substances, can affect the lifespan of the bearings. Choosing the right material and design can mitigate these risks.
As industries continue to evolve, so too will the design and materials used in four-point contact ball bearings.
Advancements in materials science may lead to stronger, more durable bearings that can handle even greater stresses.
As automation becomes more prevalent, the need for bearings that can handle complex loads will only increase, pushing the development of more specialized designs.
Four-point contact ball bearings play a critical role in modern industrial machinery. Their ability to handle multiple types of loads simultaneously makes them an essential component in applications ranging from cranes to conveyors. As industries evolve, these bearings will continue to be refined and adapted to meet the demands of increasingly complex machinery.
A four-point contact ball bearing can handle both radial and axial loads simultaneously, whereas a standard ball bearing typically only handles radial loads.
These bearings are used in industries like construction, manufacturing, automation, and material handling, particularly in machinery such as cranes, excavators, and conveyors.
Look for signs of excessive noise, vibration, or difficulty in movement, which could indicate wear or failure.
Yes, these bearings are designed to handle both high radial and axial loads, making them ideal for heavy-duty applications.
The lifespan depends on factors like load, maintenance, and operating conditions, but regular maintenance can significantly extend their service lifeabout 6000-1000h.
