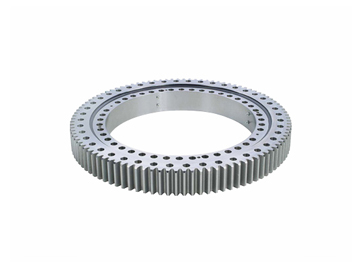

The Importance of Double Row Ball Slewing Bearings
When it comes to industrial machinery that requires reliable, long-lasting performance under heavy loads, slewing bearings play a critical role. Double row ball slewing bearings are one of the most robust solutions available, designed to handle large axial, radial, and tilting moment loads simultaneously. These bearings are known for their superior load capacity and increased safety factor when compared to single row slewing bearings, making them ideal for heavy-duty applications such as cranes, trucks, and construction equipment.
Joylax

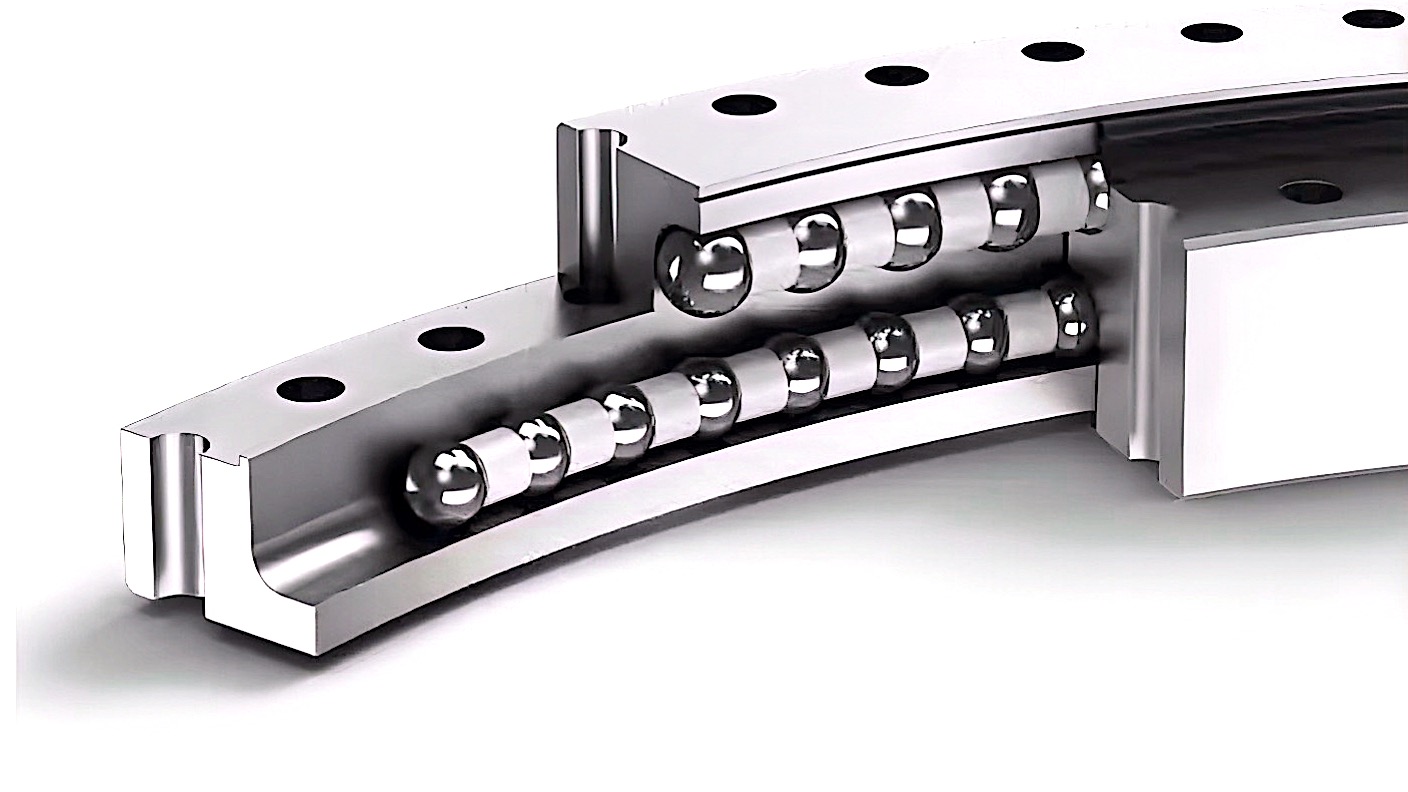

The key feature of a double row ball slewing bearing is its two rows of steel balls, each with a different diameter. The steel balls are placed in the upper and lower races, which are designed to distribute the load evenly. The bearing consists of three seat rings—one central and two outer rings—that hold the balls in place. The spacing blocks and steel balls are arranged according to the stress distribution to maximize the bearing's performance.
Double row ball slewing bearings work by using two rows of steel balls that help evenly distribute axial and radial loads. This design allows the bearing to handle multiple types of stresses at once, ensuring smooth and reliable rotation in heavy-duty machinery. The larger axial and radial sizes, coupled with the solid structure, make these bearings ideal for applications that require high reliability and performance.
One of the primary advantages of double row ball slewing bearings is their ability to carry larger loads compared to single row bearings. With two rows of steel balls, these bearings can handle greater axial, radial, and moment loads, making them suitable for equipment that operates under heavy stress.

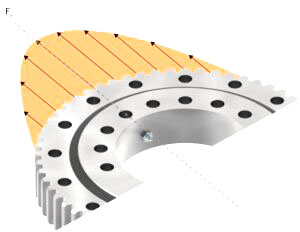

Radial load

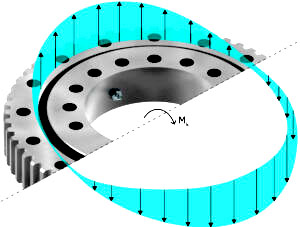

Title moment load
Axial load
Double row ball slewing bearings can handle axial, radial, and tilting moment loads all at the same time. This capability is critical in machines where multiple forces are acting simultaneously, such as in cranes or truck-mounted lifting equipment.
Due to their solid structure and larger size, double row ball slewing bearings offer increased durability and a higher safety factor. This makes them ideal for high-stress applications where bearing failure could have serious consequences, such as in fire trucks and heavy lifting equipment.
The material selection for double row ball slewing bearings is critical to their performance and longevity. High-quality materials are used to ensure that these bearings can withstand significant stress and provide reliable service over time.
50Mn is a medium-carbon steel alloy known for its strength, wear resistance, and durability. It is often used in bearings for high-load applications, providing long-lasting performance under demanding conditions.
42CrMo is an alloy steel that offers high strength, good toughness, and excellent wear resistance. This material is often used for heavy-duty bearings because it can handle large stresses while maintaining its structural integrity.
C45 steel is another commonly used material for double row ball slewing bearings. It is a medium-carbon steel that combines good wear resistance and strength, making it suitable for applications that require high durability.
Double row ball slewing bearings are widely used in a variety of heavy-duty applications that demand high load-bearing capacity and durability. Some of the key applications include:
Fire trucks require slewing bearings that can handle large axial and radial loads, especially when rotating the truck’s turntable or other critical parts. Double row ball slewing bearings provide the necessary support and stability in these demanding applications.
Pump trucks, which often need to move large pumps and operate under heavy stress, rely on double row ball slewing bearings for smooth operation. These bearings are crucial in supporting the rotation of the pump's boom or turret.
In tower cranes, double row ball slewing bearings are used to support the load-bearing parts of the crane, including the jib and counterweight. Their ability to handle both radial and axial loads makes them essential for safe and efficient crane operation.
Truck-mounted cranes also use double row ball slewing bearings to provide stability and precise rotation during lifting operations. These bearings ensure that the crane's movement is smooth, reducing wear and improving safety.
Truck crane
Window cleaner
AGV trolley
Port machine
Wind power generation
Medical machine
The ability to bear larger loads compared to single row ball bearings makes double row slewing bearings ideal for heavy-duty machinery that operates under high stress. This higher load capacity helps improve the overall performance and safety of the equipment.
Double row ball slewing bearings offer greater stability and a higher safety factor due to their solid structure and dual-ball row design. This makes them ideal for critical applications where failure is not an option.
From construction to fire fighting, double row ball slewing bearings are used in a wide range of industries, demonstrating their versatility. Whether it’s a crane, pump truck, or tower crane, these bearings are designed to handle a variety of load conditions and offer long-term reliability.
Whether it’s adjusting the size, load capacity, or materials, manufacturers can create custom designs to suit the requirements of the machinery.

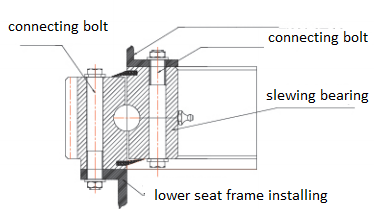

seat frame installing
To ensure that double row ball slewing bearings continue to function efficiently and last longer, regular maintenance is essential. Here are a few key maintenance tips:
Periodically inspect the bearing for wear, damage, or signs of excessive heat.
Keep the bearings well-lubricated to reduce friction and prevent premature wear.
Continuously monitor the bearing’s performance, especially in high-load applications, to detect any issues early.
Double row ball slewing bearings are an essential component in machinery that requires high load-bearing capacity and precision. Their robust design, ability to handle multiple load types, and increased safety factor make them ideal for heavy-duty applications such as fire trucks, cranes, and pump trucks. By choosing the right materials and ensuring proper maintenance, these bearings provide long-term reliability and performance, contributing to the overall efficiency of industrial machinery.
These bearings are used in fire trucks, pump trucks, tower cranes, truck-mounted cranes, and other heavy machinery.
Double row ball slewing bearings are typically made from 50Mn, 42CrMo, and C45 steel.
The dual ball row design allows them to handle axial, radial, and tilting moment loads simultaneously.
Regular inspection, lubrication, and performance monitoring are essential to ensure the bearings operate efficiently and last longer.
