JL-2100
JOYLAX

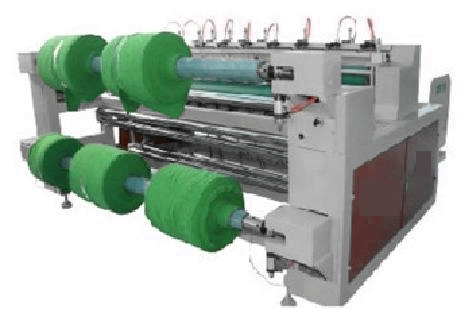

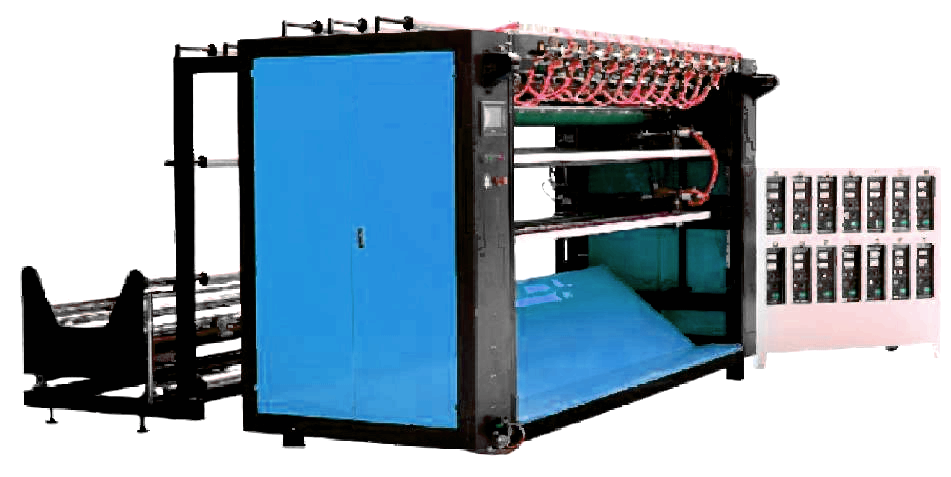

An ultrasonic slitting machine uses high-frequency sound waves to cut fabrics. Unlike traditional methods that rely on needles and threads, this machine employs ultrasonic energy, providing clean, precise cuts without fraying the material.
The ultrasonic slitting machine utilizes PLC for centralized control, automating the entire processing action. This automation reduces the need for manual labor, streamlining operations and increasing efficiency.
The machine features a cradle-type and batch discharging system, which includes an automatic correction control system. This ensures uniform feeding, minimizing errors, and enhancing the smoothness and cleanliness of the cuts.
Designed with a robust mechanical structure, the ultrasonic slitting machine boasts high stability during high-speed operations. This durability significantly improves the machine’s lifespan.
Product name | Ultrasonic slitting machine | Model | JL-2100 |
Working power supply | 220V/380V | Generator power | 800W* 6SETS |
Work efficiency | 1-30m/min | Output frequency | 20KHz |
Slitting width | 30-2000mm | Max unwinding diameter | 800mm |
Motor power | 2.2KW | Weight | 2500KGS |
Overall results | Ultrasonic operation electrical cabinets, work flow machine | ||
The machine’s operations are centrally controlled electronically, ensuring ease of use and an elegant appearance.
It features magnetic powder brakes and clutches, air rising shafts, and inflatable shafts for receiving material, making operation straightforward.
The machine uses a high-quality pneumatic knife made in Germany, ensuring precise and efficient cutting.
The machine includes a 300 automatic brushless deviation correction device, which ensures uniform feeding, scratch-proof handling, and minimizes waste edge width to as little as 1 cm.
An inverter control system manages the running speed, providing stable and reliable operation.
The machine includes a fabric feeding rack for seamless material input.

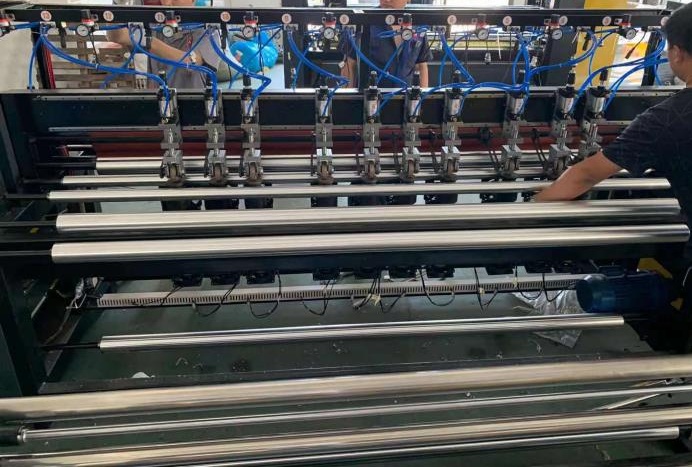

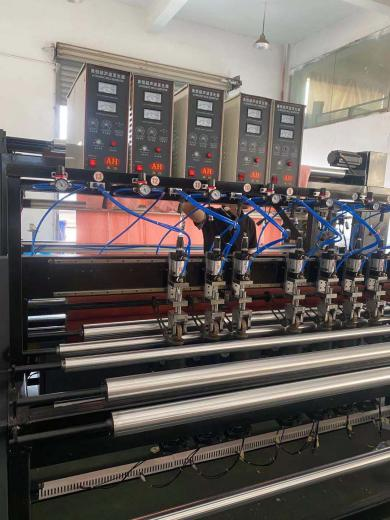

A dedicated ultrasonic cutting unit ensures precision in pattern cutting.
The control cabinet houses all the electronic components, ensuring centralized management.
After cutting, the fabric is neatly rolled using the final fabric rolling device.
One of the primary advantages is the absence of burrs and the neatness of the cuts. The machine ensures precise, clean edges without deviation.
The width of the cuts can be easily adjusted, providing flexibility for various fabric types and sizes.
Automation and advanced technology result in high work efficiency, saving both time and labor.
By optimizing the cutting process and reducing waste, the ultrasonic slitting machine is more energy-efficient compared to traditional methods.
The machine’s efficiency and reduced labor requirements lead to significant cost savings over time.
The machine’s robust structure and high-speed operation stability enhance its durability, ensuring a longer service life.
The machine is versatile, handling materials such as nonwoven fabrics, nylon, chemical cloth, glue cotton, and PU.
It finds applications across multiple industries, including textiles, automotive, medical, and packaging.
Customers can choose from a wide range of models and sizes, ensuring the machine meets their specific needs.
Different cutter types and sizes can be customized according to customer requirements.
The machine is designed for easy maintenance, with accessible components and straightforward procedures.
Its user-friendly interface makes it easy to operate, even for those new to ultrasonic cutting technology.
Ultrasonic slitting offers numerous advantages over traditional needle and thread methods, including cleaner cuts, reduced material waste, and increased efficiency.
The performance and precision of ultrasonic slitting machines surpass traditional methods, providing superior results in less time.
The Full Automatic Ultrasonic Slitting Machine represents a significant advancement in the textile industry. Its automation, precision, and efficiency make it an invaluable tool for manufacturers looking to improve their fabric cutting processes. By investing in this technology, businesses can achieve better results, reduce costs, and stay ahead in a competitive market.
The machine is versatile and can handle materials like nonwoven fabrics, nylon, chemical cloth, glue cotton, and PU.
The automatic correction system uses sensors and controls to ensure uniform feeding and precise cuts, minimizing errors.
The machine’s efficiency and reduced need for manual labor result in significant cost savings over time.
The machine is designed for easy maintenance, with accessible components and straightforward procedures.
Customers can choose from various models and sizes, and different cutter types can be customized according to specific needs.
