Why FSC Series Slewing Drives Are Essential for Heavy Machinery
In the world of engineering and construction, having reliable, high-performance components is crucial for the success of machinery operations. FSC series slewing drives are one such component that plays an indispensable role in many heavy-duty applications. These drives are known for their high torque, high load-bearing capacity, and precise control, making them an ideal choice for machinery such as excavators, cranes, and rotary drilling rigs.

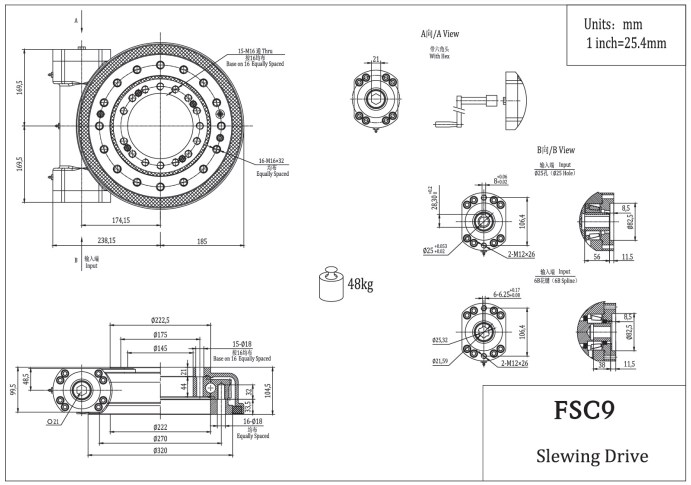

FSC9
Joylax
At their core, FSC series slewing drives combine a worm gear mechanism with a rotary drive. These drives use a worm and worm gear arrangement, which provides a high reduction ratio, making them ideal for applications that require slow and steady rotation. Their self-locking feature ensures that the load remains stationary when the drive stops rotating, providing extra safety for both operators and the machinery itself.
The operation of an FSC series slewing drive involves the movement of the worm gear, which is driven either hydraulically or electrically. As the worm turns, it moves the gear, which in turn rotates the machinery. This mechanism allows for the precise control of the machinery's rotation and positioning.
One of the standout features of FSC series slewing drives is their ability to handle extremely high torque and heavy loads. This makes them suitable for demanding applications in industries such as construction, marine, and solar energy, where machinery must rotate heavy equipment without compromising performance.
FSC slewing drives are equipped with a high reduction ratio, which allows for precise, low-speed rotation. This is particularly important in applications like cranes and aerial work platforms, where slow and controlled movement is necessary for safety and accuracy.
A significant advantage of FSC series slewing drives is their self-locking function. When the drive stops rotating, it prevents any reverse movement, effectively "locking" the load in place. This self-locking feature is particularly important for lifting and positioning equipment, as it ensures that heavy loads do not slide or rotate unintentionally, enhancing safety.
FSC slewing drives offer customizable accuracy and clearance settings. This means that the precision of the drive can be tailored to meet specific operational needs, ensuring that it performs optimally for the intended application.
The worm gear design provides exceptional rotational stability, ensuring smooth and consistent movement even under heavy loads. This is crucial in applications where precise positioning and steady rotation are required, such as in cranes and aerial work platforms.
The self-locking feature of FSC slewing drives offers an added layer of safety. It prevents reverse rotation when the drive is not in use, which helps to secure loads and prevent accidents during operation.
FSC slewing drives are designed to operate in tough environments, such as construction sites, marine applications, and other challenging industrial settings. They are resistant to dust, moisture, and other harsh conditions, making them highly reliable in demanding situations.
FSC series slewing drives are versatile and used in a variety of industries. Here are some of the key applications:
FSC slewing drives are commonly used in excavators and cranes for their high torque and precise rotation. These drives help ensure that large loads are lifted and moved with accuracy and stability, improving the efficiency and safety of the equipment.
In aerial work platforms, FSC slewing drives provide rotation control, allowing the platform to extend and rotate with precision. This enables operators to work in hard-to-reach areas safely and efficiently, without the need for the platform to be repositioned.
FSC slewing drives are also used in marine cranes and truck-mounted cranes. These applications require powerful, precise rotation capabilities to lift and position heavy loads in often challenging environments.
FSC slewing drives are utilized in solar tracking systems, where they help position solar panels to maximize sunlight exposure. The precise rotation provided by these drives helps improve the efficiency of solar energy systems.
Drilling Rig
Road Construction Equipment
Spraying Equipment
Aerial work vehicles are designed to reach heights safely and efficiently, and FSC series slewing drives enhance their functionality by providing precise control and flexibility in operation.
In some aerial work vehicles, FSC slewing drives are used to rotate the entire vehicle body. This allows operators to cover a larger work area without needing to move the vehicle, improving efficiency and minimizing downtime.
FSC slewing drives are particularly beneficial for tasks that require high precision, such as installation, maintenance, or repair work at height. The drives allow operators to make fine adjustments to the position of the vehicle or equipment, ensuring accurate results.
Our FSC series slewing drives are available in a wide range of specifications and can be customized to suit specific needs. With 14 product specifications to choose from, we can tailor the drive’s performance to match the exact requirements of any application.
Our manufacturing process adheres to the highest quality standards, ensuring that each slewing drive is durable, reliable, and performs optimally in any environment.
FSC series slewing drives offer a reliable, high-performance solution for industries that require precise, controlled rotation and high load-bearing capacity. With their self-locking mechanism, high torque, and customizable accuracy, these drives play a critical role in machinery such as cranes, excavators, and aerial work platforms. Whether used in construction, marine, or solar energy applications, FSC slewing drives ensure that heavy equipment operates safely, efficiently, and with precision.
1. What industries use FSC series slewing drives?
FSC slewing drives are used in industries such as construction , marine, solar energy, and aerial work platforms.
2. What makes FSC slewing drives ideal for cranes and excavators?
Their high torque, load-bearing capacity , and precise control make them perfect for heavy-duty equipment that requires stable rotation.
3. How does the self-locking function benefit FSC slewing drives?
The self - locking feature prevents reverse rotation when the drive stops, providing extra safety for lifting and positioning equipment.
4. Can FSC series slewing drives be customized?
Yes, FSC slewing drives can be customized for specific applications, with adjustable accuracy and clearance setting.
5. What is the maximum rotation speed of FSC slewing drives?
FSC slewing drives are designed for low - speed, high - torque rotation, typically operating at speeds less than 1 RPM.
