TY-05 EcoThermo Cargo Trike

TY-05 EcoThermo Cargo Trike is a professional cold-chain delivery solution for urban logistics. With 60km range, 48V lithium battery, and 850W rear hub motor, it combines electric/pedal-assist power with temperature-controlled cargo space for reliable last-mile fresh food and pharmaceutical delivery.

Model:
TY-05
Brand:
JOYLAX BOXU


Color customized:	WHITE BLACK
Availability:



Inquire

Product Description

Product Description

The TY-05 EcoThermo Cargo Trike is engineered for efficient, sustainable last-mile cold-chain delivery. Built with a robust alloy steel frame and full suspension, it delivers stable performance across urban roads while its temperature-controlled cargo box preserves perishables.

微信图片_20260316110807_1284_113_副本微信图片_20260316110810_1287_113_副本

Featuring a 48V lithium battery (32/50AH options) and 850W brushless rear hub motor, it supports both electric and pedal-assist modes with a 60km range, making it ideal for fresh food, floral, and pharmaceutical delivery. The hydraulic disc brake system ensures safe stopping at max speed ≤25km/h, while the 6-speed gear system adapts to varied terrain. Designed for durability and ease of use, it’s the smart choice for eco-conscious logistics businesses.

✨ Key Product Highlights

Dual Power Modes: Electric + pedal-assist for flexible, energy-efficient operation
Long-Range Performance: 60km range on a single charge (5-8H charging time)

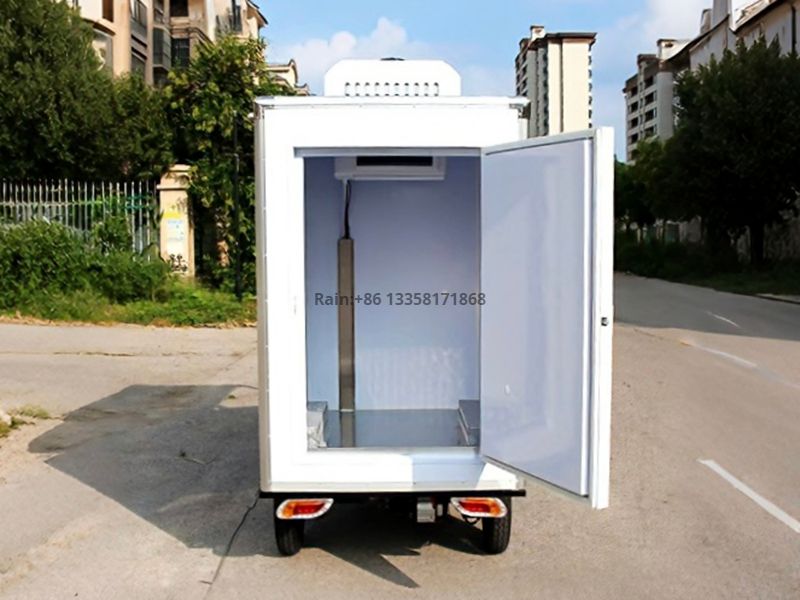

Cold Chain Ready: Integrated temperature-controlled cargo box for perishable goods
Robust & Safe: Alloy steel frame, full suspension, and hydraulic disc brakes
Powerful Motor: 850W rear hub motor with 80-90Nm torque for heavy loads
User-Friendly Design: 6-speed gears, 20" tires, and ergonomic seating for comfort

Product Specifications

Category	Details	Category	Details
Range per Power	≥60 km	Battery Capacity	32AH / 50AH (Lithium)
Voltage	48 V	Motor Power	850W (Brushless Rear Hub Motor)
Torque	80-90 Nm	Max Speed	≤25 km/h
Braking System	Hydraulic Disc Brake	Frame Material	Alloy Steel
Tire Size	20x2.2 inch	Wheel Size	20"
Driven Type	Electric + Pedal-Assist	Gears	6 Speed
Suspension	Full (Front + Rear)	Charging Time	5-8 Hours
Battery Position	Rear Carrier	Watt-Hour	2400 Wh

微信图片_20251117165200_27_69_副本微信图片_20251120135828_515_30_副本微信图片_20251117165159_26_69_副本

❓ Frequently Asked Questions (FAQ)

1. What is the maximum payload capacity of the TY-05?

The TY-05 is designed to carry heavy cargo loads, with a payload capacity optimized for cold-chain delivery (typically 150-200kg, depending on configuration). Contact us for custom payload specifications.

2. Can the temperature-controlled cargo box be adjusted?

Yes, the integrated refrigeration unit allows precise temperature control to preserve perishables, making it suitable for fresh food, flowers, and pharmaceutical products.

3. How long does it take to fully charge the battery?

The 48V lithium battery charges from 0 to 100% in 5-8 hours, supporting overnight charging for daily delivery operations.

4. Is the trike compatible with both electric and manual pedaling?

Absolutely! The TY-05 features a dual-mode system: pure electric power for effortless cruising, and pedal-assist mode to extend range while reducing rider effort. The 6-speed gear system further enhances terrain adaptability.

Product Category

Related Products

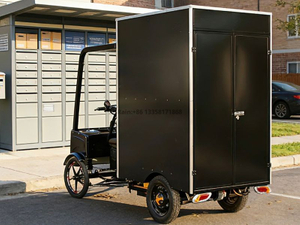

TY-04 Electric-Quad Cargo 350
