TY-03 Electric Tricycle Mobile Vending Cart

Versatile, eco-friendly solution for mobile retail and food service. Designed for urban environments

Model:
TY-03
Brand:
JOYLAX BOXU


Color customized:	WHITE BLACK Color as you like
MOQ.:	1
Availability:



Inquire

Product Description

Product Description

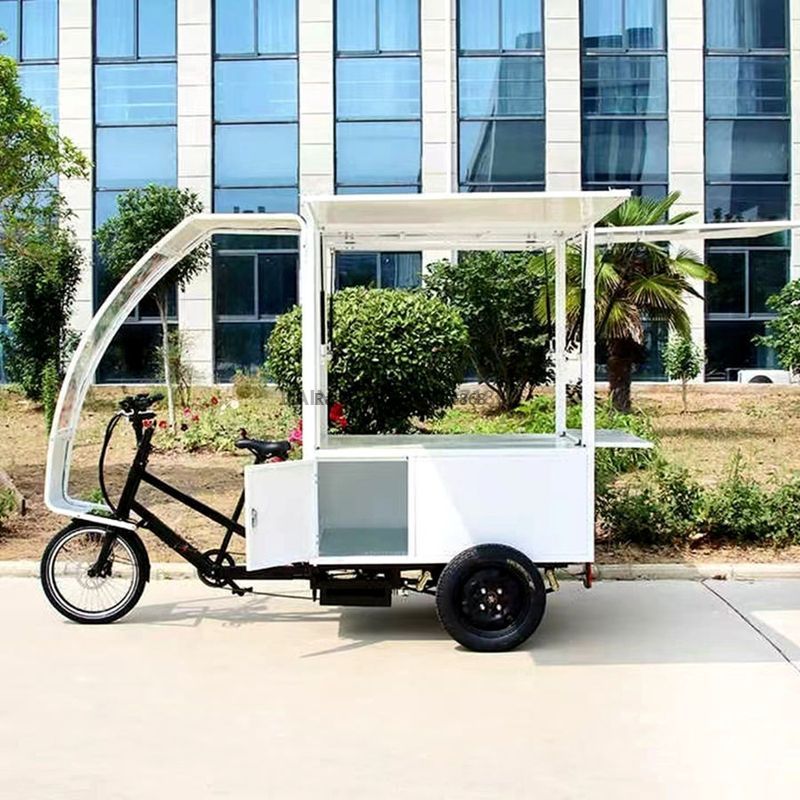

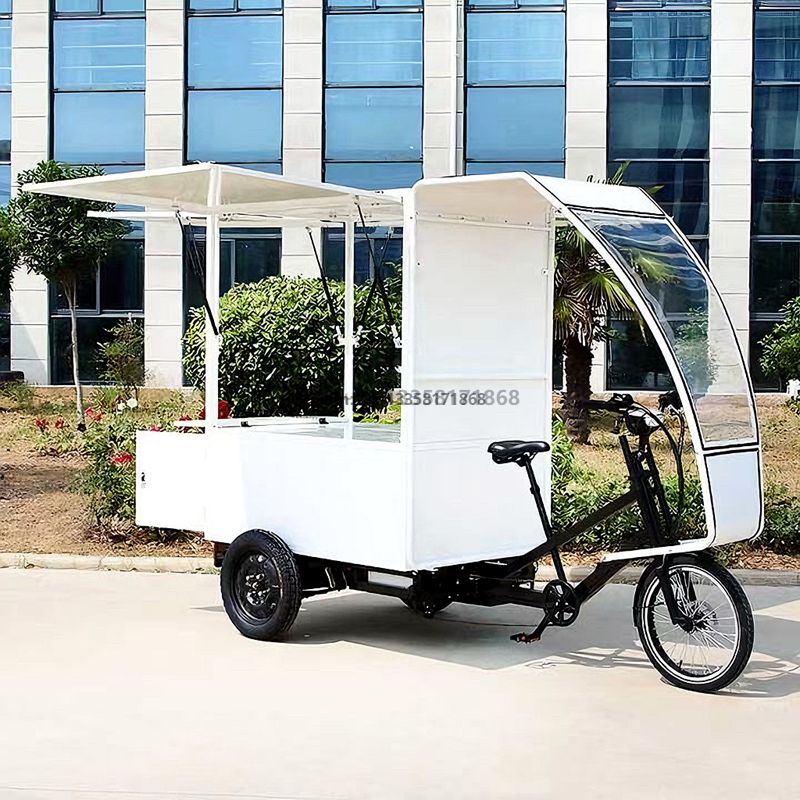

The TY-03 electric tricycle mobile vending cart redefines on-the-go business. Built with a robust 6061 aluminum alloy frame and high-carbon steel cargo box, it balances durability and maneuverability. The electric assist system, with a 36V 50Ah battery, provides a 65km range, while the 25-31km/h top speed ensures efficient movement through city streets.

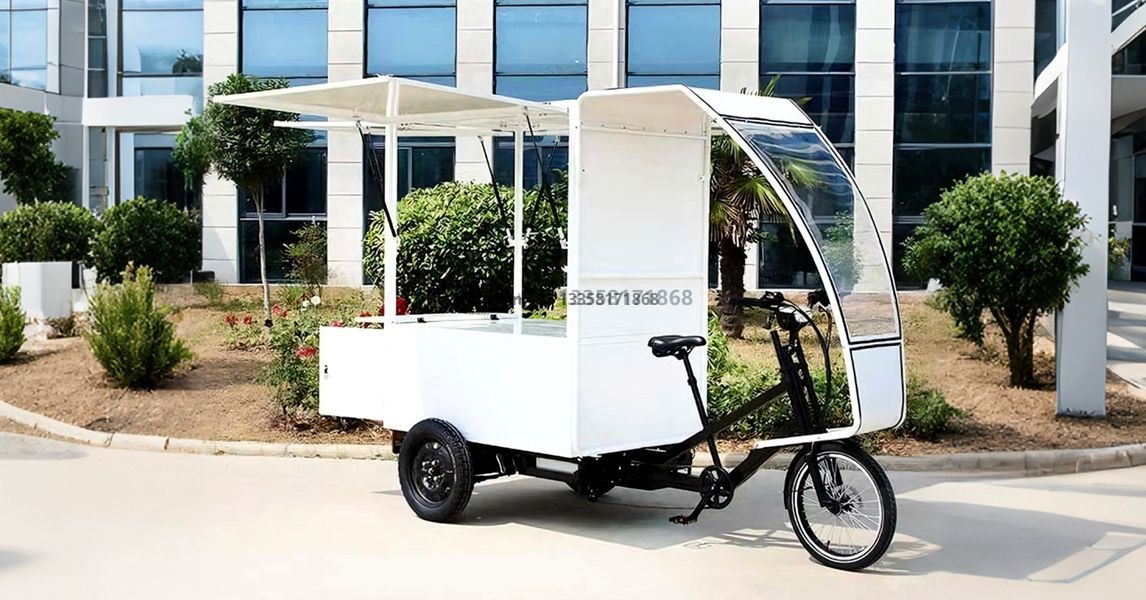

微信图片_20260309163352_1120_113

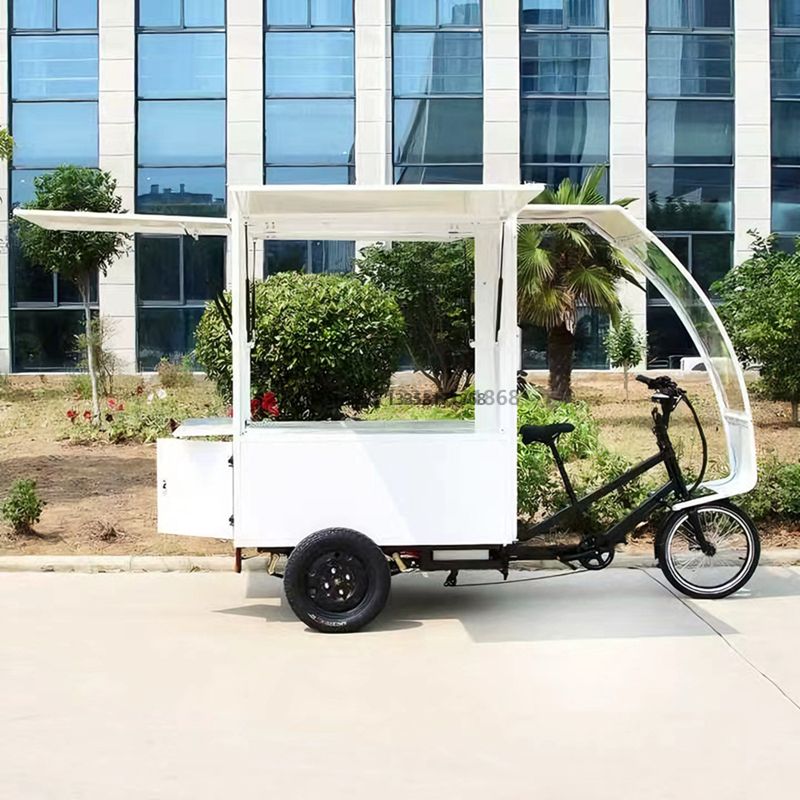

Its open cargo area with expandable side flaps creates a flexible retail space, ideal for coffee, snacks, or small goods. The high-transparency PET windshield offers protection from the elements, and the LCD instrument panel keeps you informed of speed, battery, and mileage. Whether you’re a street vendor, a café owner, or a pop-up entrepreneur, the TY-06 turns every journey into a profitable opportunity.

Product Highlights

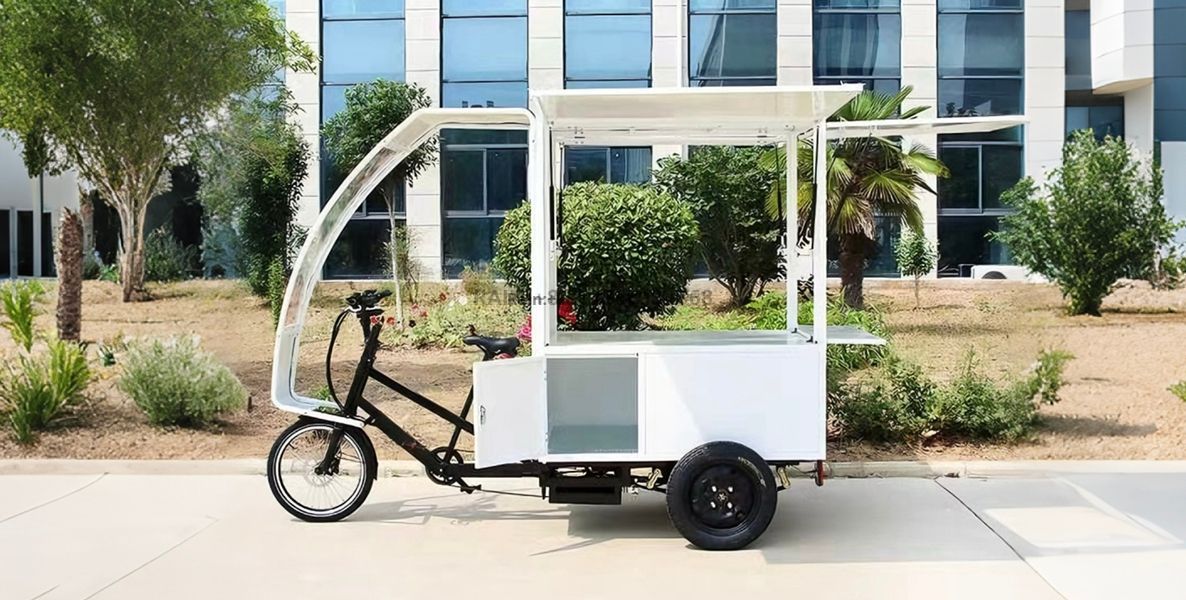

✅ Lightweight & Durable Construction: Crafted with 6061 aluminum alloy profiled tube for the main frame, this material boasts excellent corrosion resistance, light weight, and high structural strength—making the cart easy to maneuver while ensuring long-term durability. The cargo box and outer panel are made of 1.0mm thick high-carbon steel, capable of withstanding daily wear and tear from outdoor operations, while the 1.2mm thick patterned aluminum frame bottom plate enhances load-bearing capacity and anti-slip performance.

微信图片_20260309163355_1123_113

✅ Eco-Friendly & Efficient Power System: Equipped with a 36V 50Ah battery, the TY-06 delivers a reliable 65km range per full charge, which is fully sufficient for a full day of mobile vending operations (e.g., street stalls, market rounds). The zero-emission electric design complies with global environmental protection standards, while the configurable motor options (250W/350W/500W/850W) allow customization based on regional speed limits and load needs. The included 8A charger ensures fast charging, taking only 6-7 hours to fully charge the battery for next-day use.

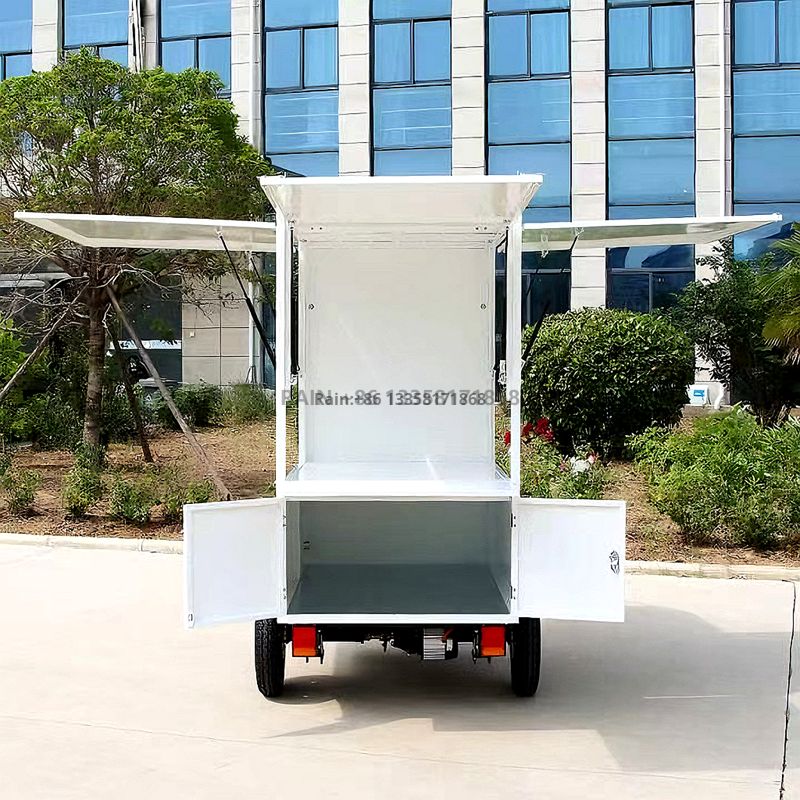

✅ Flexible & Adaptable Retail Space: The open cargo design, paired with expandable side flaps, maximizes usable space and adapts to diverse business needs—whether selling coffee, snacks, fast food, or small retail merchandise. The cargo box (1200×1000×1500mm) provides ample storage and display area, and the absence of a fixed internal compartment allows for free customization of shelving, equipment, or branding, making it suitable for various micro-entrepreneurial scenarios.

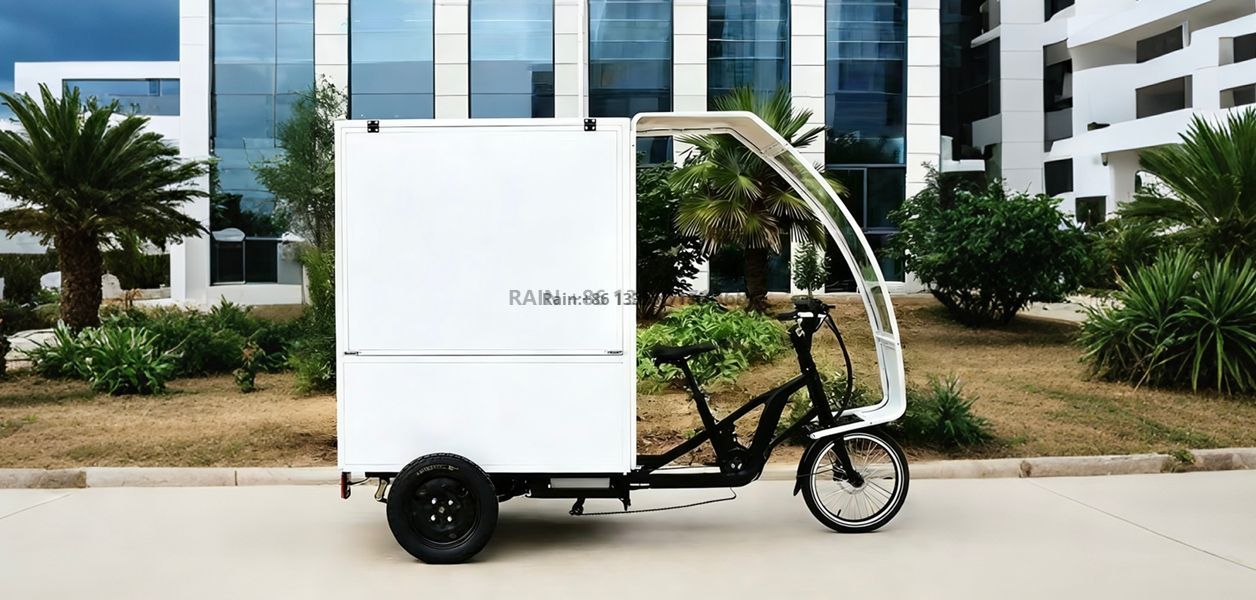

微信图片_20260309163354_1122_113

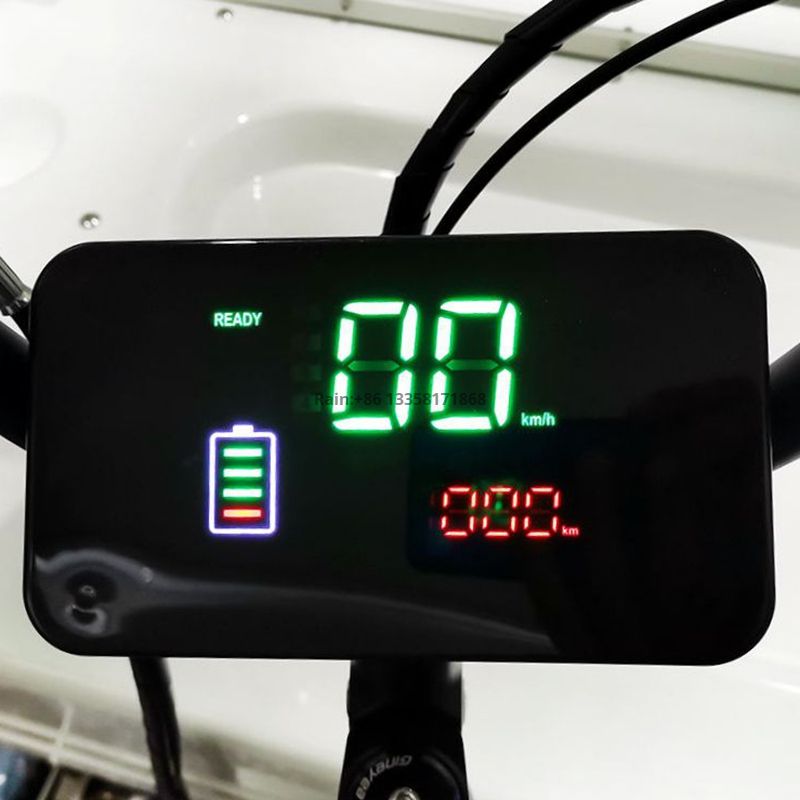

✅ Safe & Intuitive Operation: Equipped with an LCD instrument panel that clearly displays key information (speed, battery level, mileage), allowing operators to monitor the cart’s status in real time. The braking system offers two options—cable disc brake with parking function or hydraulic disc brake—ensuring stable and safe braking even when carrying full loads. The P14 assist sensor enhances riding comfort, while the 25-31km/h maximum speed balances efficiency and safety for urban navigation.

✅ All-Weather & Practical Design: The front windshield is made of high-transparency, UV-resistant PET material, effectively blocking sunlight and preventing glare, while protecting operators and goods from wind and dust. With a 30cm ground clearance, the cart can easily pass through small obstacles (e.g., curbs, uneven roads) in urban and suburban areas. The overall weather-resistant materials ensure stable operation in different climates, supporting year-round vending business.

spare parts 4 wheel cargo 1_副本 Ad481066e340b4744ac8f126bd958d5ebl.jpg_960x960q80_副本 KLAO0080_副本

Technical Specifications

Item	Specification	Item	Specification
Main Frame	6061 Aluminum Alloy Profiled Tube	Maximum Payload	200kg (Goods Only)
Cargo Box	1.0mm Thick High-Carbon Steel	Max Climbing Angle	13°
Frame Bottom Plate	1.2mm Thick Patterned Aluminum Plate	Max Speed	25–31 km/h
Outer Panel	1.0mm Thick High-Carbon Steel	Range per Charge	65 km

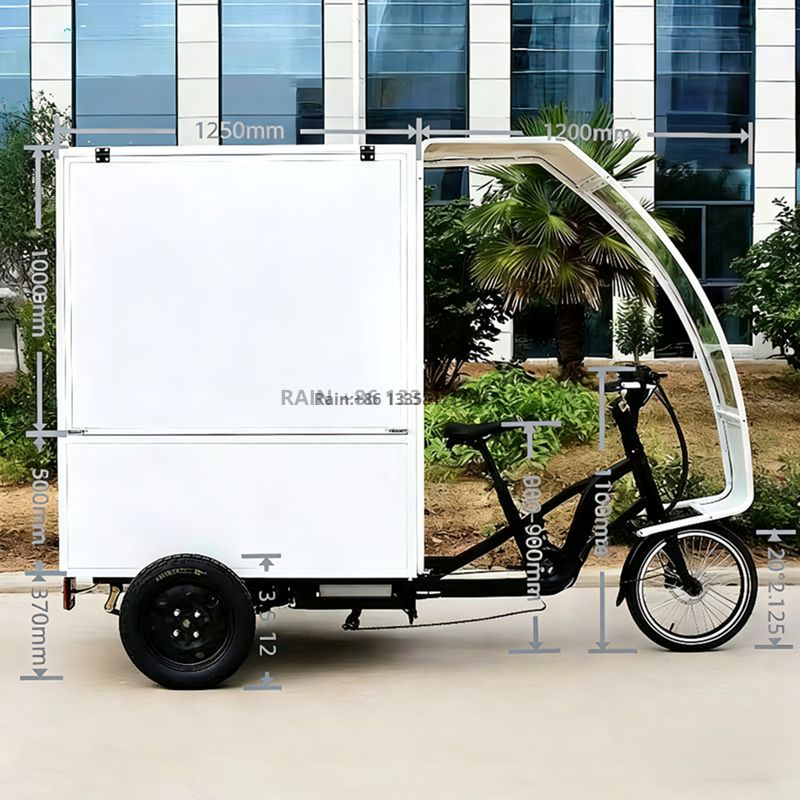

Overall Dimensions	2600 × 1000 × 1800 mm	Motor	36V/48V; 250W/350W/500W/850W (Configurable)
Cargo Box Dimensions	1200 × 1000 × 1500 mm	Battery	36V 50Ah
Cargo Compartment	Not Equipped	Charger	8A
Ground Clearance	30 cm	Assist Sensor	P14
Front Windshield	High-Transparency UV-Resistant PET Material	Instrumentation	LCD Display
Front Tire	20 × 3.0"	Braking System	Cable Disc (with Parking) / Hydraulic Disc (Optional)

FAQ

Q: What is the maximum weight the TY-06 can carry?A: The TY-06 has a maximum payload capacity of 200kg (for goods only), making it suitable for food, beverages, and small retail merchandise. Its reinforced frame and bottom plate ensure stable load-bearing during daily operations.

Q: How long does the battery take to fully charge?A: With the included 8A charger, the 36V 50Ah battery fully charges in 6–7 hours, ideal for overnight charging between workdays. The battery is designed for long service life, supporting repeated charging cycles for extended use.

Q: Can the vending cart be customized for specific businesses?A: Yes. The open cargo area and expandable side flaps support full customization, including branding (logo printing), shelving installation, and integration of professional equipment (e.g., coffee machines, food warmers). We can also adjust the motor power and battery capacity according to your regional needs.

Q: Is the TY-06 suitable for hilly urban areas?A: It is. With a 13° maximum climbing angle and configurable high-power motors (up to 850W), it handles moderate inclines smoothly in urban and suburban settings. The reliable braking system also ensures safety when descending slopes.
